MOQ : 1 Unit

Enclosure Air Conditioner Specification

  • Power Consumption
  • 0.6 kW
  • Cooling Capacity
  • 550W @ 35C
  • Sensible control
  • Yes
  • Dimension (L*W*H)
  • 550 mm x 350 mm x 215 mm
  • Type Of Compressor
  • Rotary
  • Place of Origin
  • India
  • Condition
  • New
  • Running Current
  • 2.4A
  • Indoor Fan Input
  • 35 W
  • Filtration Grade
  • Industrial Grade Filter
  • Compressor
  • Hermetically Sealed
  • Mounting
  • Side Mount or Door Mount
  • Power Supply
  • 230V/50Hz
  • Refrigerant
  • R134a
  • Air Flow Capacity
  • Up to 200 m3/h
  • Power Mode
  • Single Phase
  • Outdoor Fan Input
  • 35 W
  • Temperature Control
  • Digital Thermostat
  • Type
  • Enclosure Air Conditioner
  • Cooling/Heating
  • Cooling
  • Capacity
  • 550 W
  • Power Source
  • Electric
  • Voltage
  • 230V AC
  • Color
  • Stainless Steel Grey
  • Weight (kg)
  • Approx. 28 kg
  • Working Temperature
  • 0C to 50C
  • Fan Speed
  • Two Speed
  • Noise Level
  • Low Noise Operation
  • Energy Efficiency Rating
  • High
  • Remote Operated
  • Yes
  • Display
  • LED indicators
  • Safety Controls
  • Auto Restart, Overload Protection, High/Low Pressure Cut Out
  • Phase
  • Single Phase AC
  • Filter Cleaning
  • Removable front filter for easy cleaning
  • Suitable For
  • MCC Panels, VFD Panels, Control Panels, Telecommunication Cabinets
  • IP Rating
  • IP54
  • Mounting Options
  • Indoor/Outdoor
  • Body Material
  • Powder Coated Stainless Steel
  • Model Number
  • DURO 550 OD
  • Cooling Media
  • Direct Expansion
  • Maintenance
  • Low Maintenance



About Enclosure Air Conditioner

A Panel Air Conditioner is a specialized cooling system designed to maintain the optimum temperature inside electrical control panels, automation cabinets, and industrial enclosures. It protects sensitive electrical and electronic components from overheating, dust, humidity, and harsh environmental conditions, ensuring reliable performance and extended equipment life.

Our Panel Air Conditioners are engineered for high cooling efficiency, low power consumption, and continuous operation in demanding industrial environments. Widely used in manufacturing plants, automation systems, power distribution panels, telecom equipment, and CNC machines, these units help prevent equipment failure and production downtime.

Features:
Efficient cooling performance
Compact and robust design
Low maintenance requirements
Energy-efficient operation
Protection against dust and moisture
Suitable for industrial control panels and electrical enclosures

Applications:
Industrial Automation, Electrical Control Panels, CNC Machines, Power Distribution Systems, Telecom Cabinets, Manufacturing Plants, and Process Industries.



Reliable Performance for Electrical Enclosures

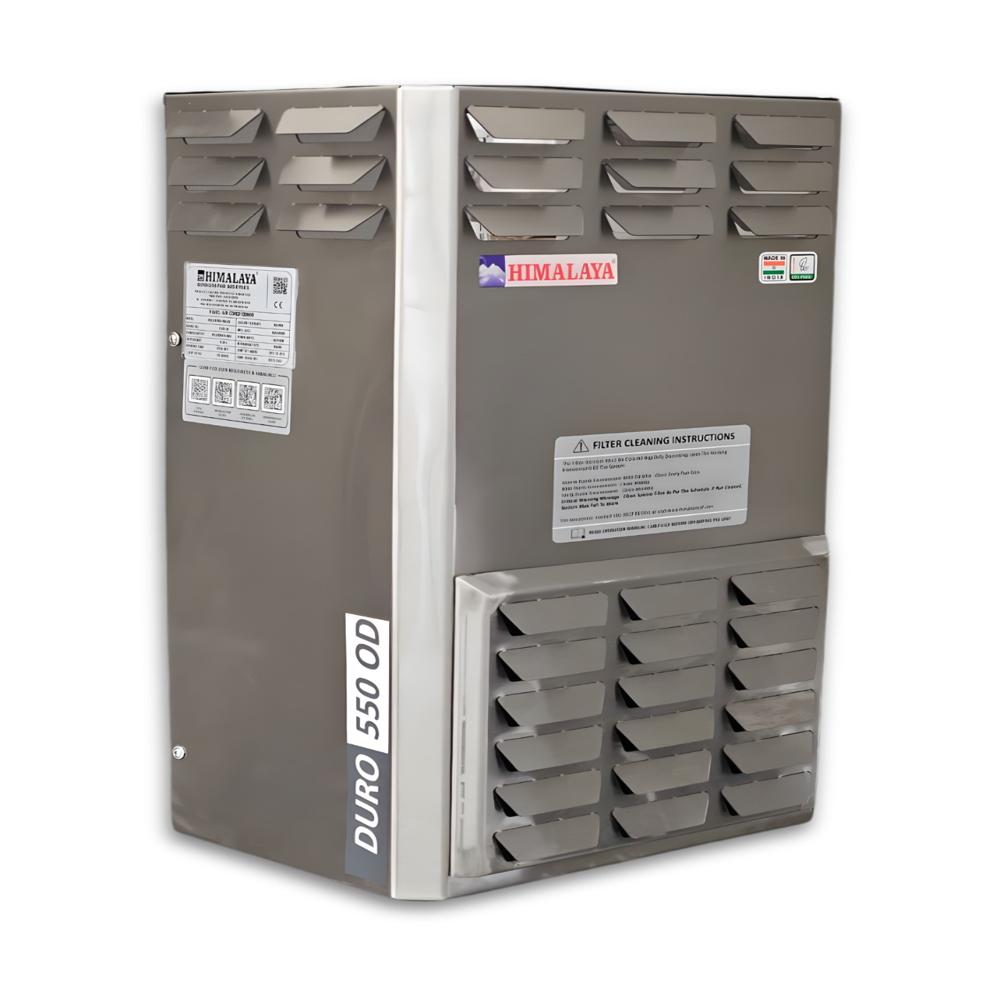

The DURO 550 OD Enclosure Air Conditioner ensures consistent cooling for critical panel systems, prolonging equipment lifespan and minimizing downtime. Featuring a hermetically sealed rotary compressor, direct expansion cooling, and high/low pressure cut-outs, it is designed to handle demanding environments within a 0C to 50C working range.


Versatile and Durable Design

With a rugged powder-coated stainless steel body and IP54 protection, this unit is suitable for both indoor and outdoor installations. The enclosure air conditioner can be side or door mounted, and its LED indicators provide straightforward status updates at a glance, making it an optimal choice for diverse industrial applications.


User-Friendly Maintenance and Operation

Benefitting from low maintenance requirements, the air conditioner features a removable front filter for easy cleaning. The digital thermostat allows for precise temperature control, while multiple safety mechanisms-such as auto-restart, overload protection, and high/low pressure cut out-help ensure safe and reliable operation.

FAQ's of Enclosure Air Conditioner:


Q: How is the DURO 550 OD Enclosure Air Conditioner installed?

A: The DURO 550 OD can be mounted either on the side or the door of enclosures and is suitable for both indoor and outdoor locations. Its compact dimensions and stainless steel construction allow for straightforward integration into various panel types.

Q: What types of enclosures are compatible with this air conditioner?

A: This model is suitable for MCC panels, VFD panels, control panels, and telecommunication cabinets, making it versatile for a range of industrial and commercial applications.

Q: When should the filter be cleaned, and how do I do it?

A: For optimal performance, the removable front filter should be checked and cleaned periodically-typically once a month or as needed based on environmental conditions. Simply remove the filter from the front panel, clean it with water or compressed air, and reinstall when dry.

Q: Where can this air conditioner be used safely?

A: The DURO 550 OD is designed for secure operation in environments with temperatures from 0C to 50C and is equipped with IP54 protection, enabling use in moderately dusty or damp industrial and commercial settings.

Q: What process does the cooling system use?

A: It uses a direct expansion cooling system with R134a refrigerant and a hermetically sealed rotary compressor, delivering a cooling capacity of 550W at 35C ambient temperature for efficient heat removal from sensitive equipment.

Q: How does the unit enhance energy efficiency and safety?

A: The air conditioner features two-speed fan operation, a high energy efficiency rating, and safety controls such as auto restart, overload protection, and high/low pressure cut-outs to reduce energy consumption and protect the system.

Q: What are the main benefits of choosing this enclosure air conditioner?

A: Key advantages include prolonging equipment life through precise temperature controls, easy ongoing maintenance, reliable safety features, and robust weather-resistant construction-ensuring continuous protection of critical electrical installations.
