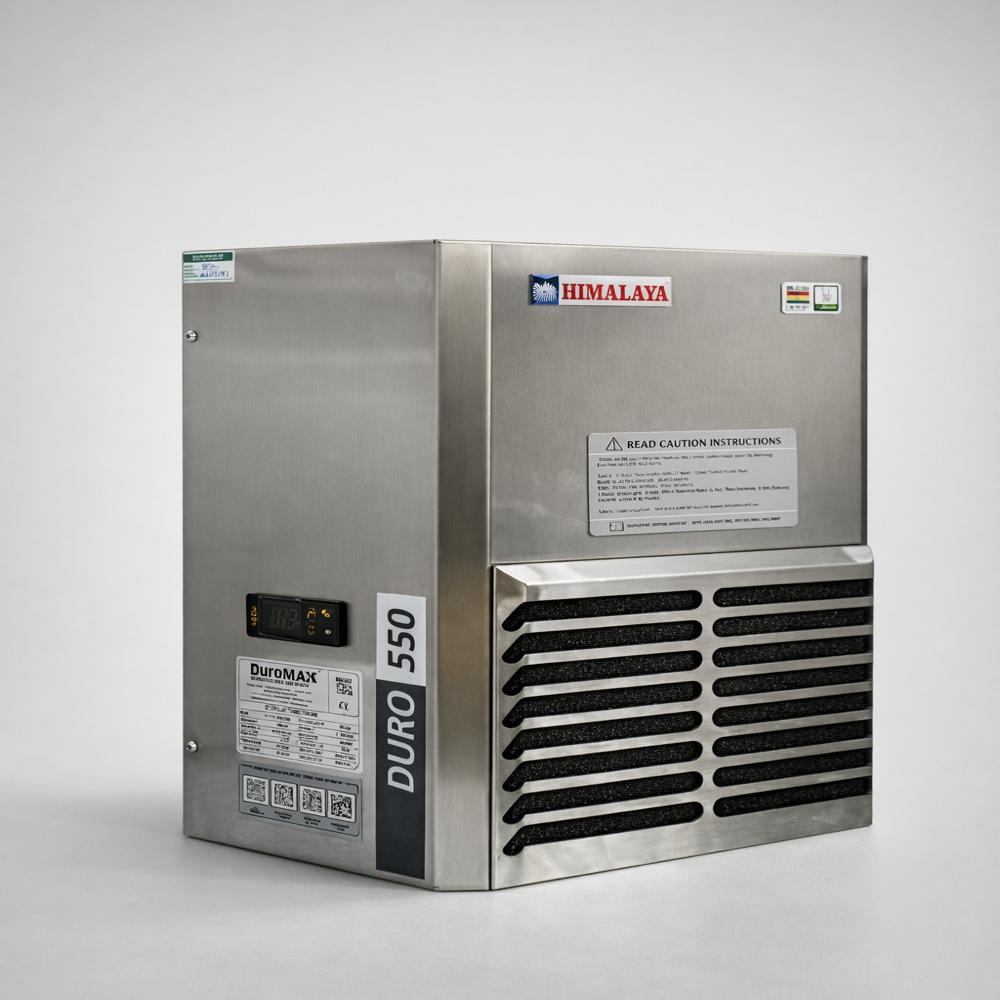

Electrical Cabinet Cooling Unit

Get a Price/Quote

MOQ : 1 Unit

Electrical Cabinet Cooling Unit Specification

Mounting
Wall/Panel Mounting

Type Of Compressor
Rotary

Temperature Control
Thermostat-based automatic

Refrigerant
R134a

Power Mode
Single Phase

Sensible control
Microcontroller based

Condition
New

Power Consumption
0.75 kW

Outdoor Fan Input
25W

Power Supply
230V AC

Compressor
Hermetically Sealed

Place of Origin
India

Filtration Grade
Standard

Indoor Fan Input
25W

Air Flow Capacity
170 m3/h

Dimension (L*W*H)
550 mm x 350 mm x 210 mm

Running Current
3.4A

Cooling Capacity
550 Watts

Type
Electrical Cabinet Cooling Unit

Cooling/Heating
Cooling

Capacity
550W

Power Source
Electric

Voltage
230V AC, 50Hz

Color
Silver/Grey

Weight (kg)
Approx. 20 kg

Working Temperature
-10C to 55C

Fan Speed
Variable

Noise Level
Low

Energy Efficiency Rating
High

Remote Operated
Yes

Filter Type
Washable Air Filter

Cabinet Material
Powder Coated Mild Steel

Model Name/Number
DURO 550 OD

Maintenance
Front removable for easy service

Ingress Protection
IP54

Display
Digital LED (optional)

About Electrical Cabinet Cooling Unit

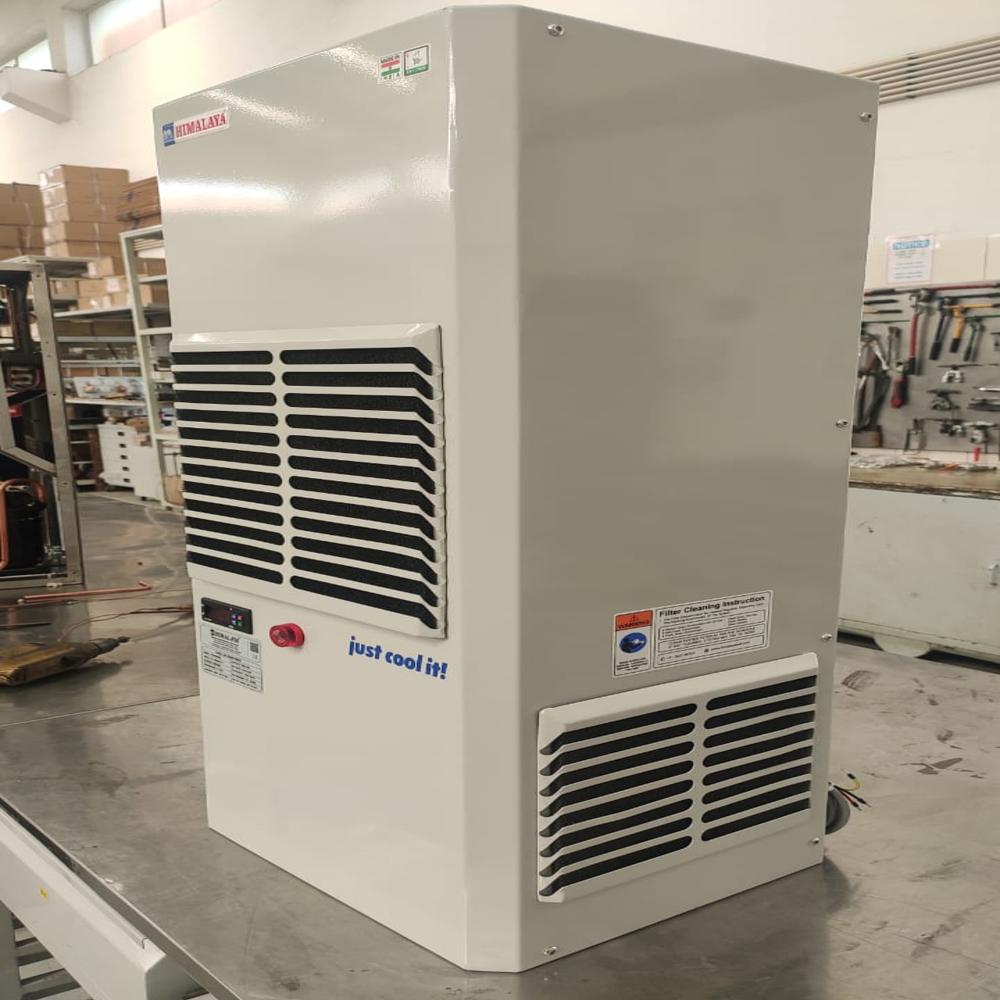

A Panel Air Conditioner is a specialized cooling system designed to maintain the optimum temperature inside electrical control panels, automation cabinets, and industrial enclosures. It protects sensitive electrical and electronic components from overheating, dust, humidity, and harsh environmental conditions, ensuring reliable performance and extended equipment life.

Our Panel Air Conditioners are engineered for high cooling efficiency, low power consumption, and continuous operation in demanding industrial environments. Widely used in manufacturing plants, automation systems, power distribution panels, telecom equipment, and CNC machines, these units help prevent equipment failure and production downtime.

Features:
Efficient cooling performance
Compact and robust design
Low maintenance requirements
Energy-efficient operation
Protection against dust and moisture
Suitable for industrial control panels and electrical enclosures

Applications:
Industrial Automation, Electrical Control Panels, CNC Machines, Power Distribution Systems, Telecom Cabinets, Manufacturing Plants, and Process Industries.

Robust Construction and Protection

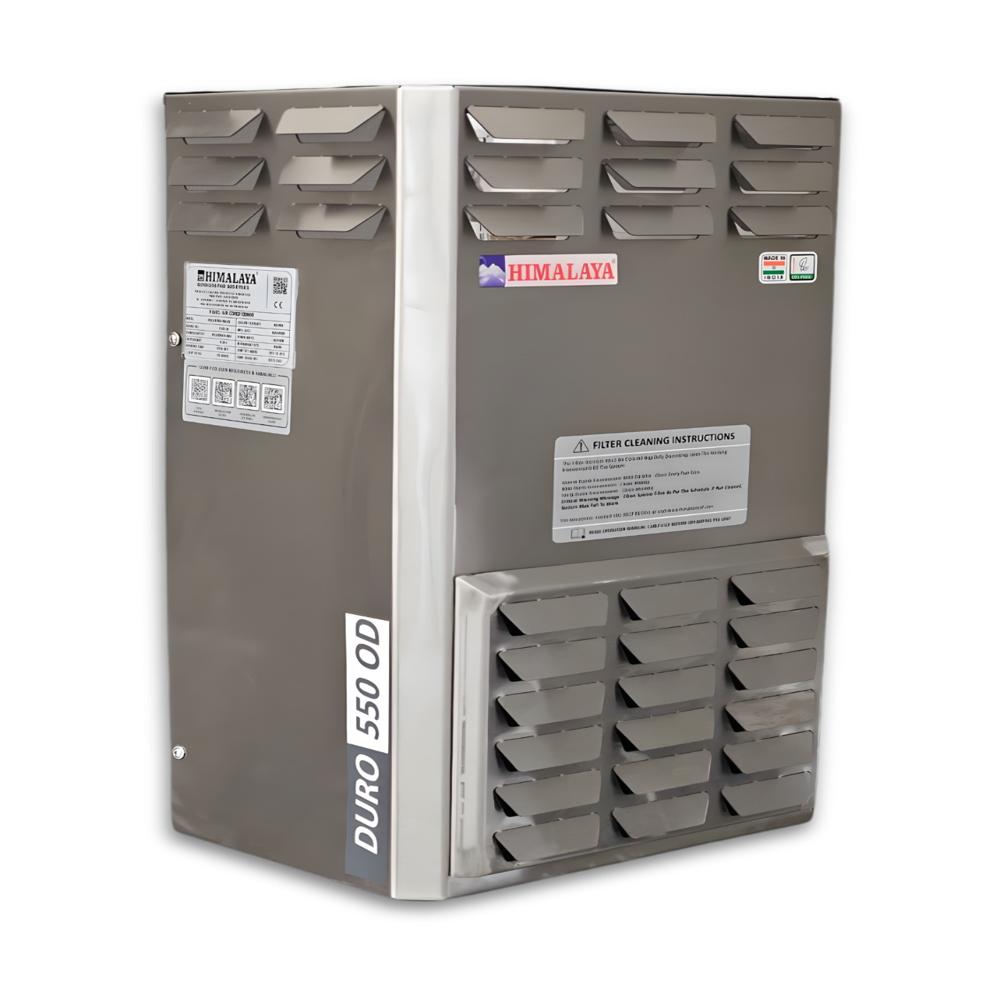

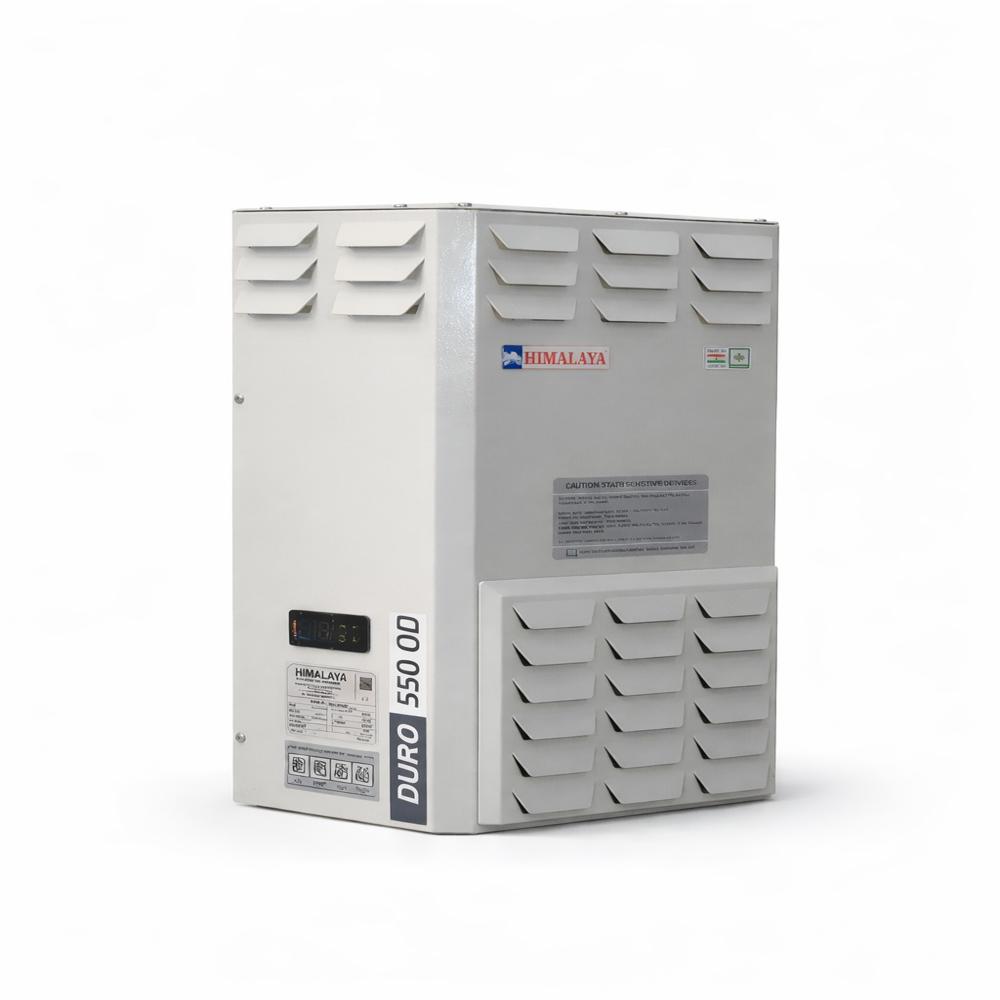

Featuring a powder-coated mild steel body and IP54 ingress protection, the DURO 550 OD electrical cabinet cooling unit is built to withstand challenging industrial settings, offering both resilience and resistance to dust and moisture.

Efficient Cooling Performance

With a 550-watt capacity, microcontroller-based control, and rotary hermetically sealed compressor using R134a refrigerant, this unit assures reliable cooling within a wide temperature range of -10C to 55C, safeguarding your sensitive equipment from overheating.

User-Centric Serviceability

Maintenance is simplified thanks to its front-removable, washable air filter, making routine service quick and straightforward. The optional digital LED display further assists operators by providing key temperature insights at a glance.

FAQ's of Electrical Cabinet Cooling Unit:

Q: How is the DURO 550 OD electrical cabinet cooling unit installed?

A: The DURO 550 OD can be easily mounted on a wall or panel, providing flexible installation options to suit various cabinet types and industrial settings. Detailed mounting instructions are included with the product.

Q: What makes the maintenance process convenient for this cooling unit?

A: The unit features a front-removable, washable air filter, allowing users to quickly access and clean the filter without intricate disassembly. This design enables easy and regular maintenance, ensuring prolonged performance.

Q: When should the washable air filter be cleaned or replaced?

A: It is recommended to inspect and wash the air filter periodically based on the operating environment-typically every one to two months-to maintain maximum airflow and cooling efficiency. Replace the filter if it shows signs of overstress or damage.

Q: Where is the DURO 550 OD ideally used?

A: This cooling unit is ideal for industrial electrical cabinets exposed to warm, dusty, or moderately humid environments. Its robust design and IP54 ingress protection make it suitable for factories, automation panels, and process industry enclosures.

Q: What energy efficiency benefits does this unit provide?

A: The DURO 550 OD is designed with a high energy efficiency rating, utilizing a rotary hermetically sealed compressor and a thermostat-based automatic temperature control, thereby reducing energy consumption while ensuring reliable cooling.

Q: How does the microcontroller-based control enhance performance?

A: Microcontroller-based sensible controls provide precise and automatic temperature management, ensuring that the cabinet environment remains within desired thresholds for safe equipment operation and longevity.

Q: What are the advantages of using R134a refrigerant in this cooling unit?

A: R134a refrigerant is environmentally friendly and efficient, enabling effective cooling performance while adhering to current environmental regulations, thus making the DURO 550 OD a responsible and reliable choice.
